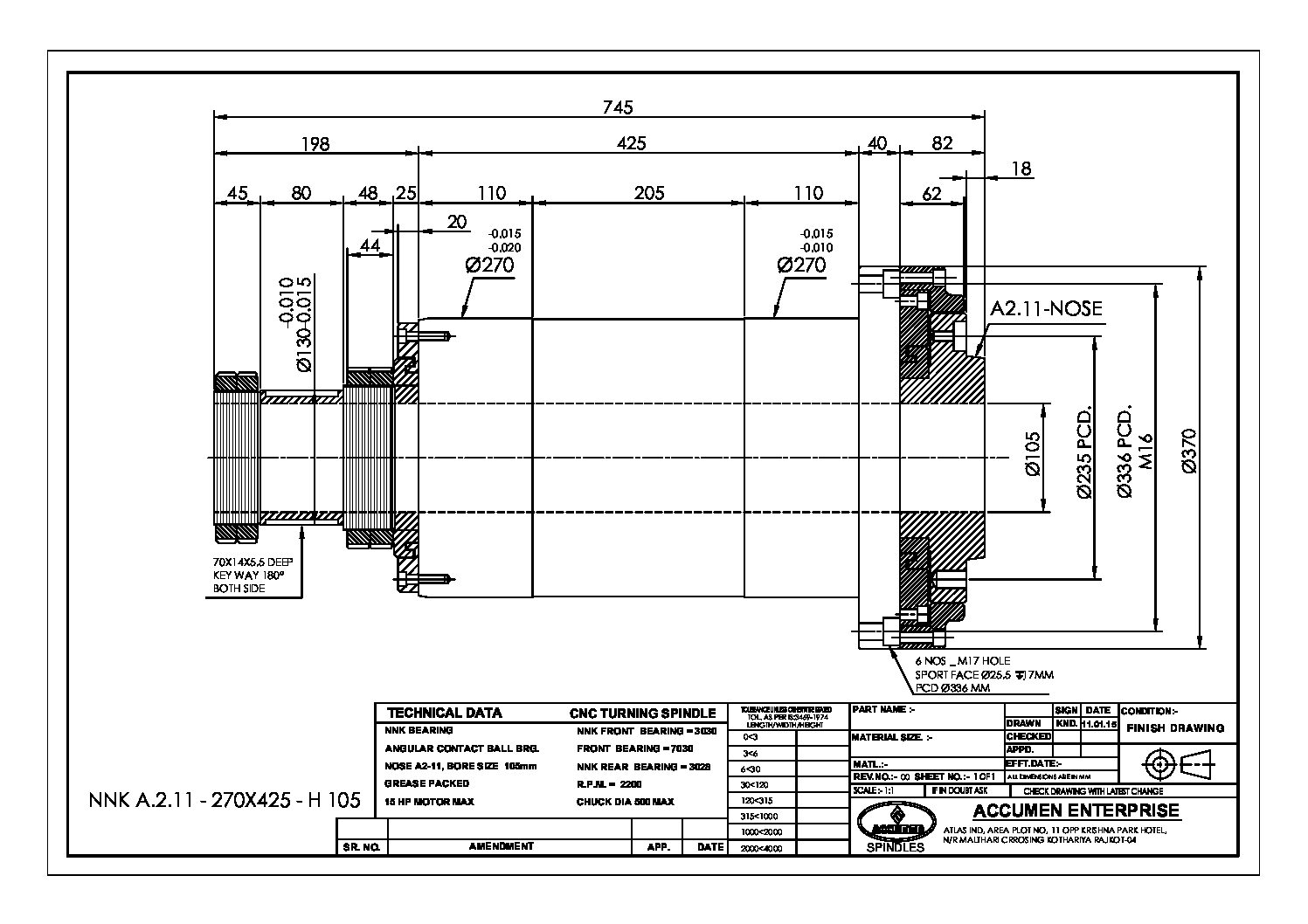

A2 – 11 270 x 425 H 105
| Product: – | A2-11-270×425-H-105-NNK | ||
| Application: – | CNC-SPM-Turning | Motor Power | 25 Hp-18.5 Kw |
| Assembly Type: | Horizontal | Max .Speed (rpm):- | 2000 |
| Spindles Nose: | A2-11 | Lubrication: – | Grease |
| Chuck-Diameter – | 135 | Drive-type: – | Belt |
| Through Hole: – | 105 | Temperature: – | Room Temperature +20 C |
| Preload: | Preload | Direction: – | Bi-Direction |
| Balance Grade: – | G1- (ISO-19400 | Weight:- | |
